PLC & Remote Radio Control

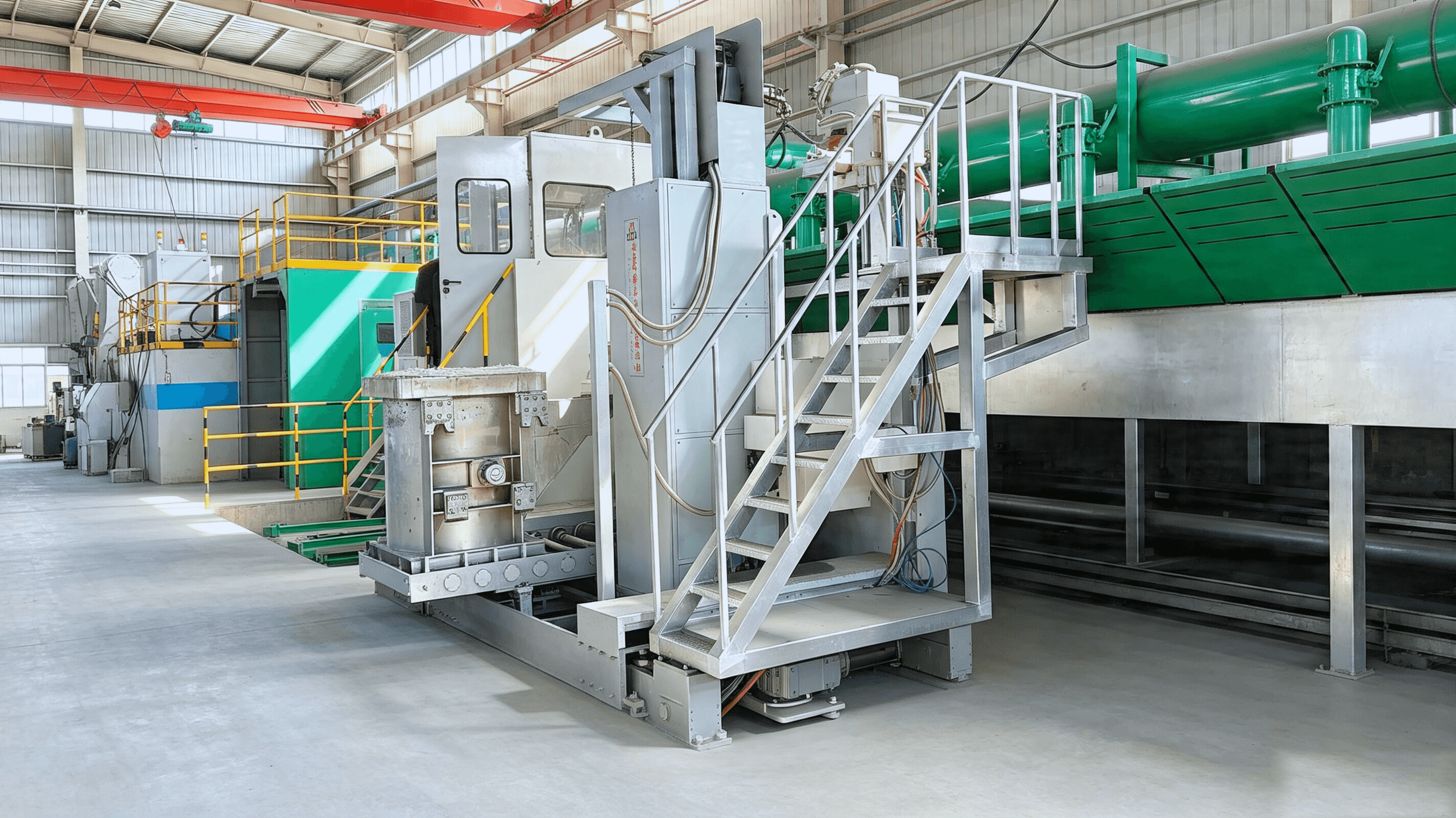

Transfer trolleys are PLC-controlled with remote radio operation and a laser ranging system for precise positioning.
JZ Series
Molten Metal Transfer & Pouring System

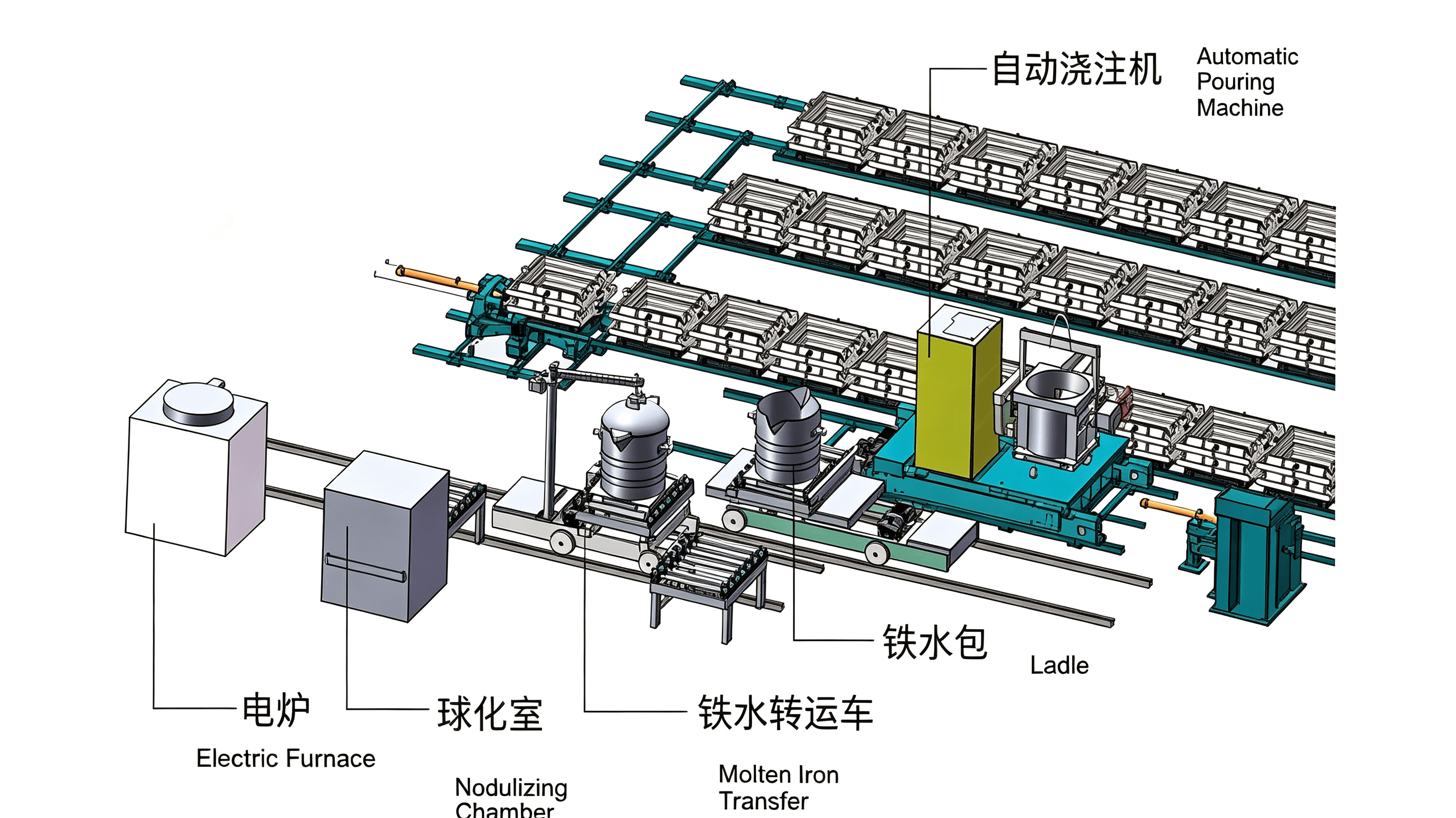

Huaxin's intelligent molten iron transfer system moves molten iron via rail-guided transfer trolleys, eliminating the safety hazards of overhead handling and forklift transportation while requiring almost no manual intervention beyond slag skimming.

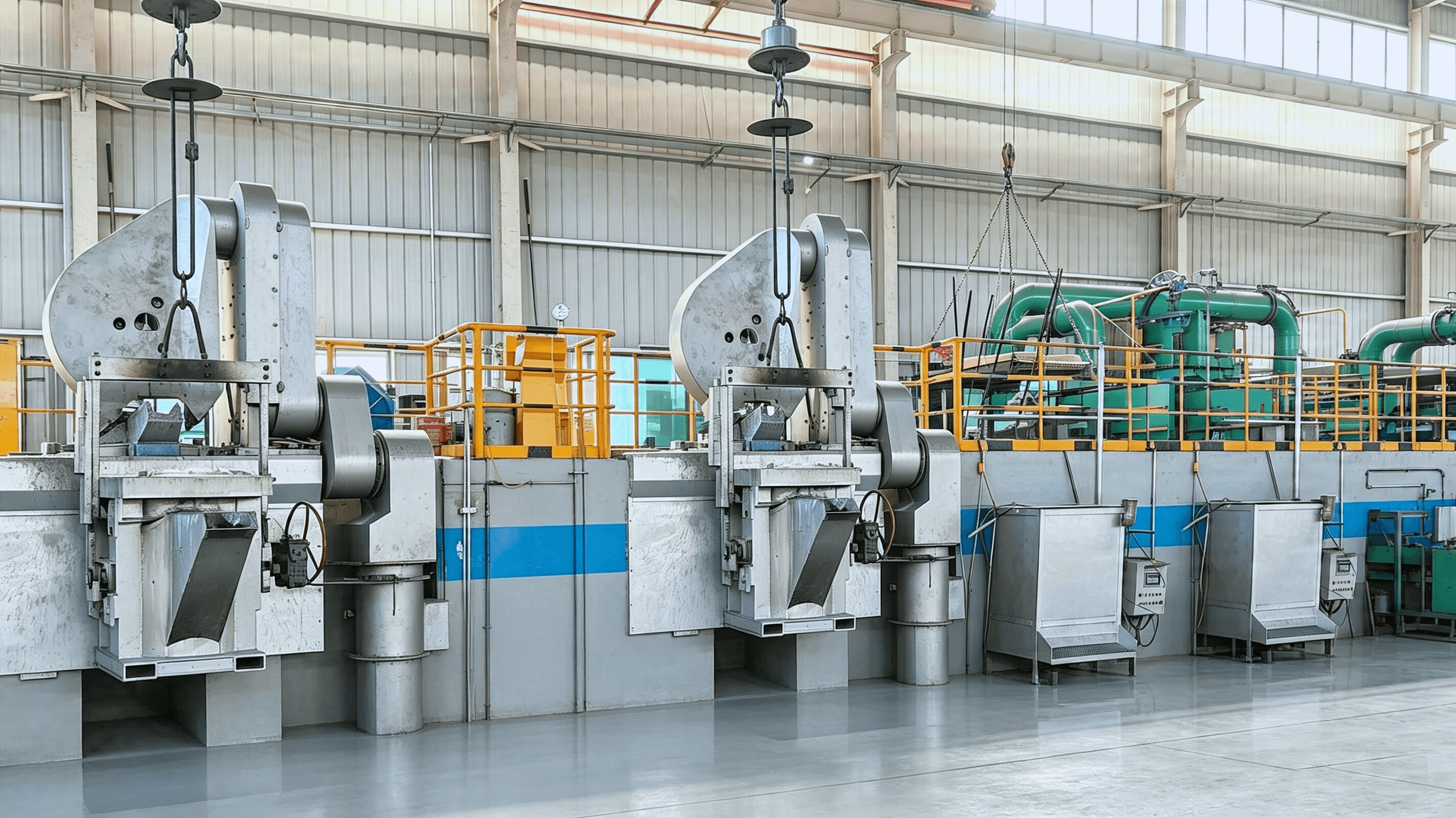

The automatic pouring machine pairs three-axis servo-driven movement with PLC control, laser positioning and a weighing system to deliver stable, high-accuracy pouring for flasked and flaskless horizontal molding lines.
Main Features
Built for Safe, Precise Molten Metal Handling

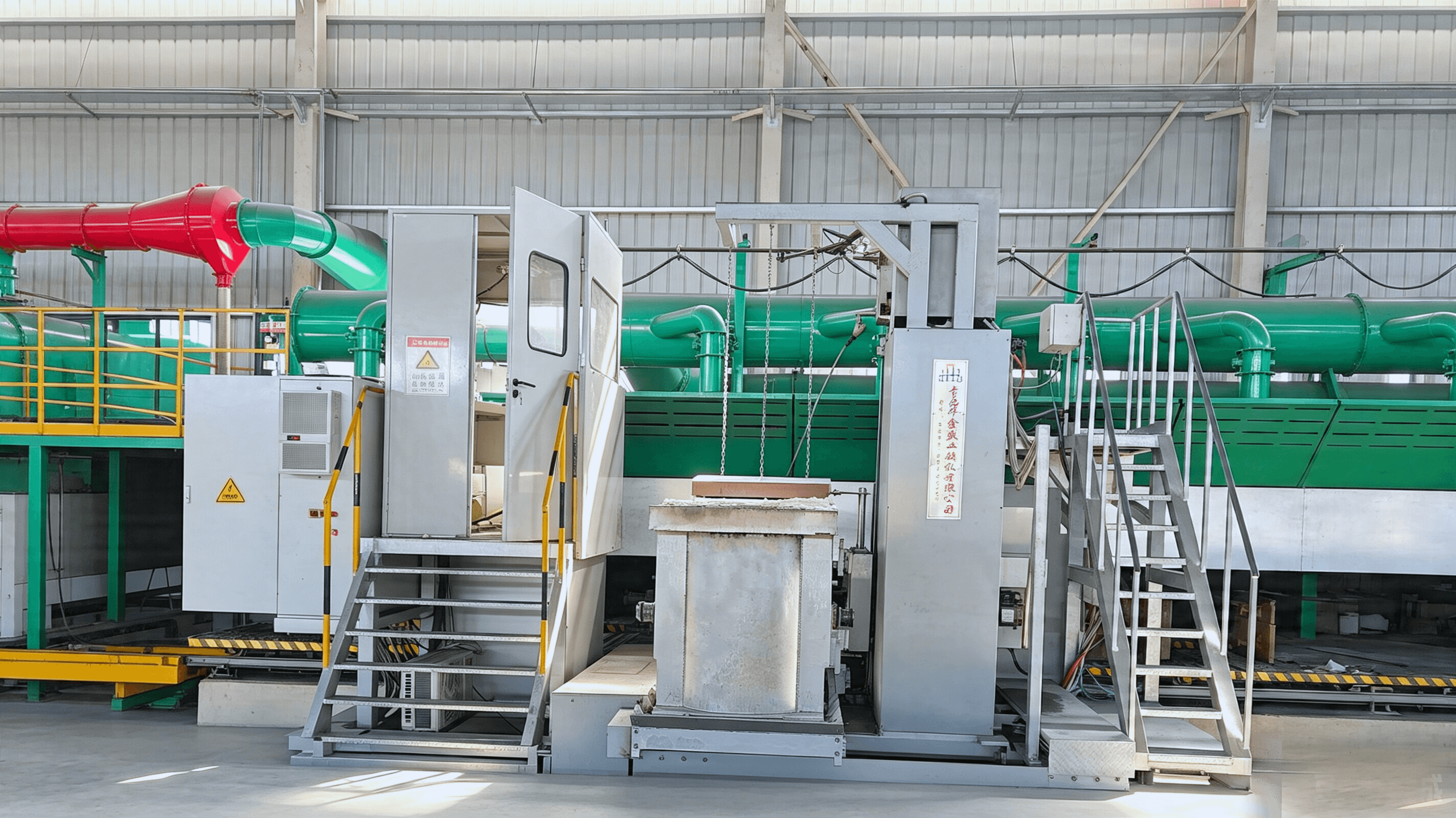

Servo-driven Ladle Tilting
Three degrees of freedom — longitudinal, transverse and tilting — driven by servo motors for adjustable pouring flow.
Integrated Weighing System
Pre-furnace trolley and pouring machine weighing systems support customizable capacity and stable continuous pouring.
Adjustable Pouring Spout
Freely adjustable spout height reduces splashing of molten iron and ensures clean pouring.
Automatic Ladle Cover
An automatic ladle cover device prevents rapid heat dissipation of molten iron.
Comprehensive Safety Protection
Detection switches, anti-collision travel switches, warning lights and emergency stop buttons keep operation within safe zones.
Technical Specifications
Typical JZ Series Configuration
ModelRated Pouring CapacityMaximum Pouring Capacity
JZ600600 KGS750 KGS
JZ10001000 KGS1200 KGS
JZ15001500 KGS2000 KGS
