Suitable for batch production of hot-box disc-and-cover type sand cores.
Core Shooting Machine

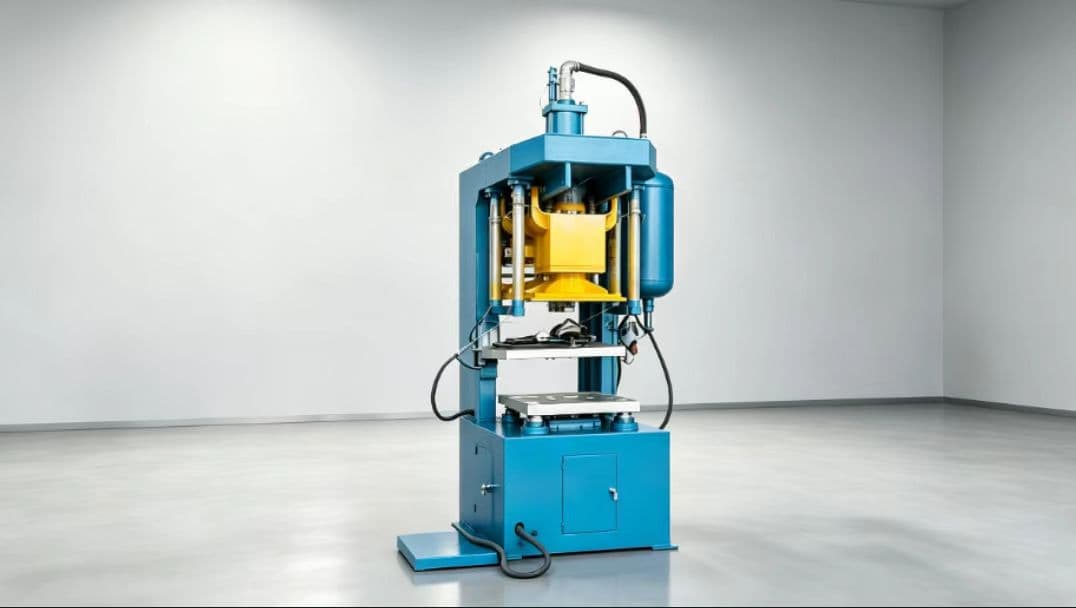

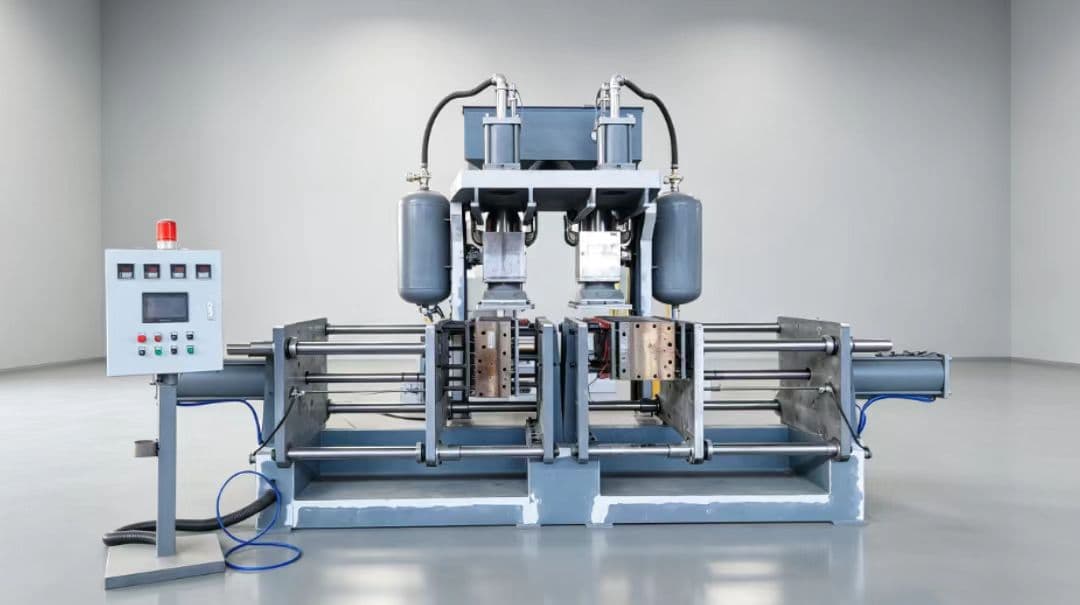

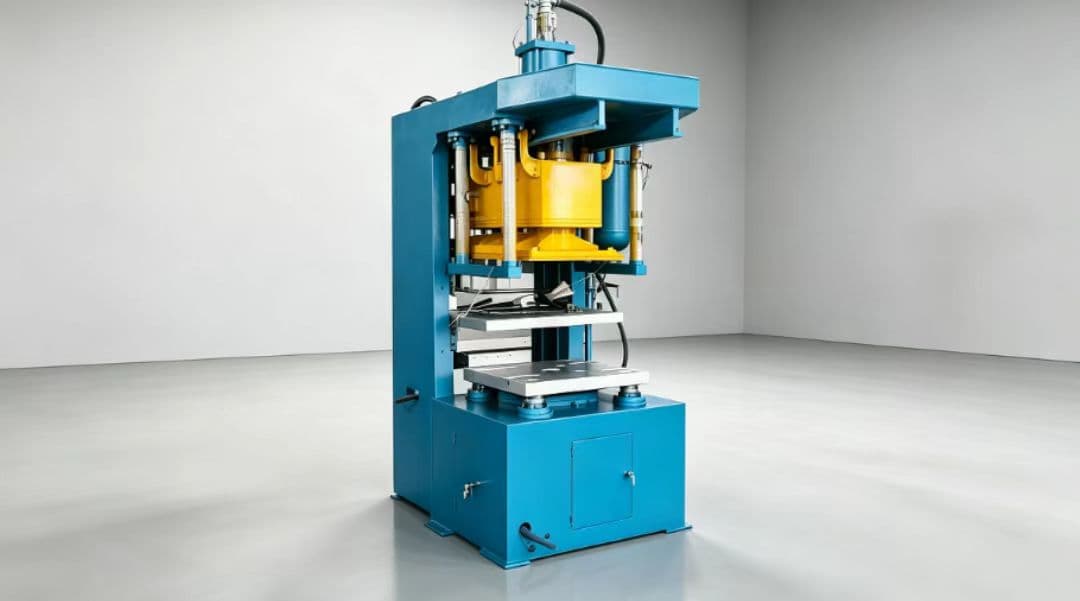

ZH Series Hot Box Core Shooter Machine
The ZH series horizontal parting hot-box core shooting machine supports fully automatic operation through a PLC touch-screen programmable controller.
Manual, single-cycle automatic and fully automatic modes allow users to match the machine to actual production requirements.
Main Features
Built for Efficient Core Production
Accurate core dimensions support stable downstream assembly and casting quality.
High productivity reduces labor intensity in core-making operations.
Optional automatic core receiving device supports efficient finished-core handling.
Pneumatic or hydraulic drive configurations are available according to user requirements.
PLC touch-screen control enables manual, single-cycle automatic and fully automatic production modes.
Technical Specifications
Main Technical Parameters
Main Technical Parameters
ParameterZHT0700ZH650SZHD650YZH850SZH850BAZH870B/YZH1080/Y
FeaturesSpecial for brake disc, single stationSingle station, open typeDouble station, open typeSingle station, open typeSingle station, open typeThree-sided open type / single station / with core ejecting mechanismWith core ejecting mechanism / hydraulic station
Pattern Plate Size930x750mm650x600mm650x600mm800x700mm930x750mm930x750mm1200x1000mm
Maximum Distance Between Pattern Plates450mm530mm530mm600mm600mm600mm700mm
Clamping Cylinder Stroke300mm400mm400mm400mm450mm400mm450mm
Maximum Core Weight10kg20kg20kg x 2 sets20kg25kg30kg35kg
Maximum Sand Hopper Capacity200kg200kg200kg200kg200kg200kg200kg
Heating Mode and PowerElectric heatingElectric heating, 20kWElectric heating, 20kW x 2 setsElectric heating, 20kWElectric heating, 30kWElectric heating, 40kWElectric heating, 40kW
Driving ModeFully pneumaticFully pneumaticFully pneumaticFully pneumaticFully pneumaticPneumatic / hydraulicPneumatic / hydraulic
Operation ModeManual buttons / full autoManual buttons / full autoManual buttons / full autoManual buttons / full autoManual buttons / full autoManual buttons / full autoManual buttons / full auto
Sand Type UsedPhenolic resin coated sandPhenolic resin coated sandPhenolic resin coated sandPhenolic resin coated sandPhenolic resin coated sandPhenolic resin coated sandPhenolic resin coated sand
Sand Feeding SystemPneumatic conveying with sand barrelPneumatic conveying with sand barrelPneumatic conveying with sand barrelPneumatic conveying with sand barrelPneumatic conveying with sand barrelPneumatic conveying with sand barrelPneumatic conveying with sand barrel
