Produces solid sand cores within specified mold plate dimensions and maximum sand shooting weight capacity.
Core Shooting Machine

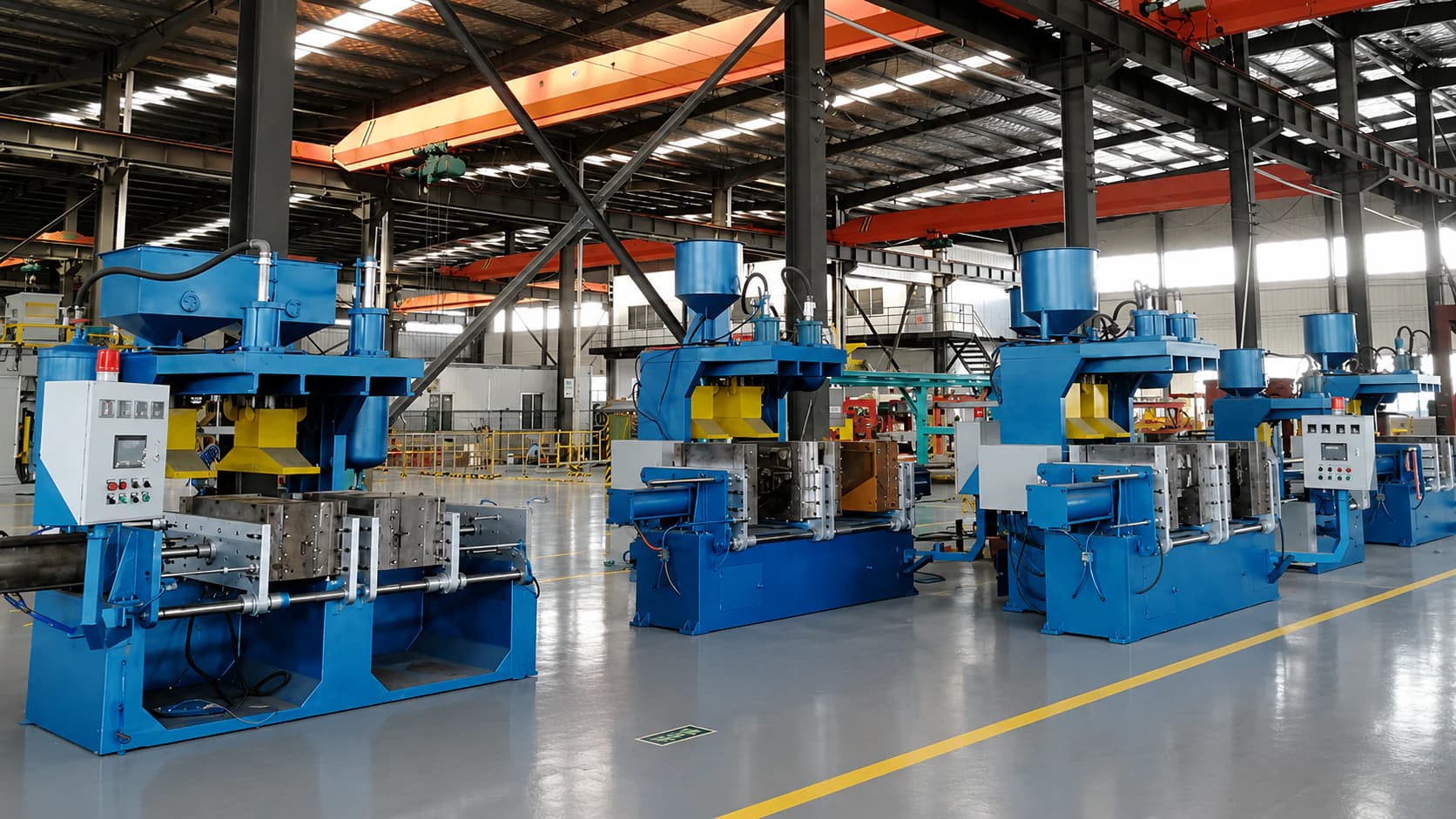

Z86 Series Hot Box Core Shooter Machine
The Z86 series injects phenolic resin coated sand into an electrically heated core box, producing finished sand cores with smooth surfaces and precise dimensions.
A vertical parting mold opening and closing system, center fixed mold and left-right movable molds support reliable core ejection and repeatable operation.
Main Features
Built for Efficient Core Production
Vertical parting mold system with a center fixed mold and left-right movable molds.
Opening and closing cylinders allow two sets of molds to be installed separately.
Fixed ejector pins automatically eject the sand core after full mold opening.
Automatic sand feeding system supports continuous production.
PLC-controlled automatic operation improves repeatability and ease of use.
Custom configurations are available according to customer casting requirements.
Technical Specifications
Main Technical Parameters
Main Technical Parameters
ParameterZ8610BFZ8613BZ8613BFZ8615BZ8615BFZ8616BFZ8618B
Pattern Plate Size (mm)620x300660x330920x320620x400660x420760x460900x600
Maximum Core Weight (kg)20202020202020
Sand Hopper Volume (L)200200200200200200200
Heating ModeElectric HeatingElectric HeatingElectric HeatingElectric HeatingElectric HeatingElectric HeatingElectric Heating
Electric Heating Power (kW)25252525252525
System Pressure (MPa)0.55-0.650.55-0.650.55-0.650.55-0.650.55-0.650.55-0.650.55-0.65
Operation ModeManual / Single CycleManual / Single CycleManual / Single CycleManual / Single CycleManual / Single CycleManual / Single CycleManual / Single Cycle
