Overhead Conveyor Series

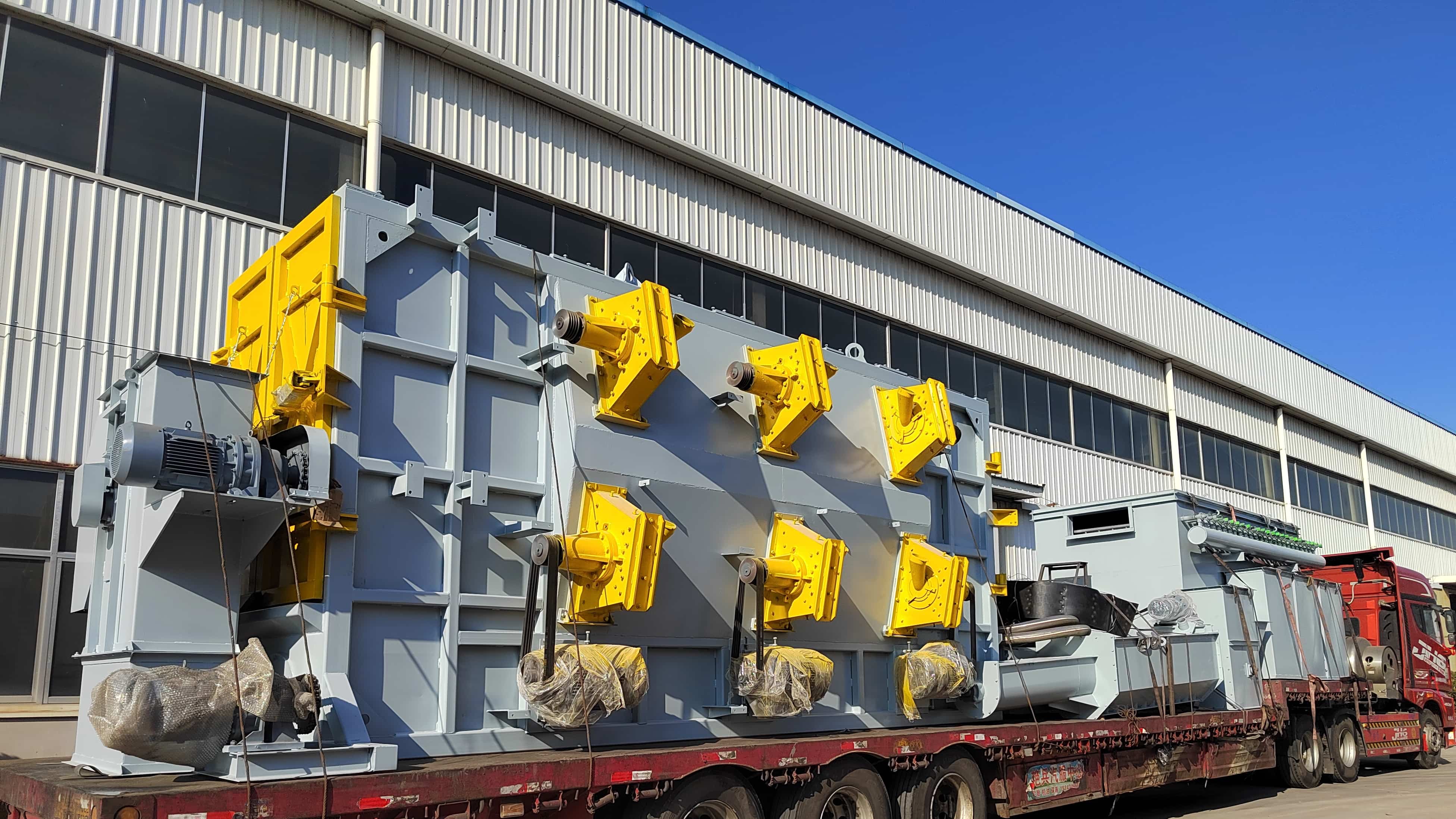

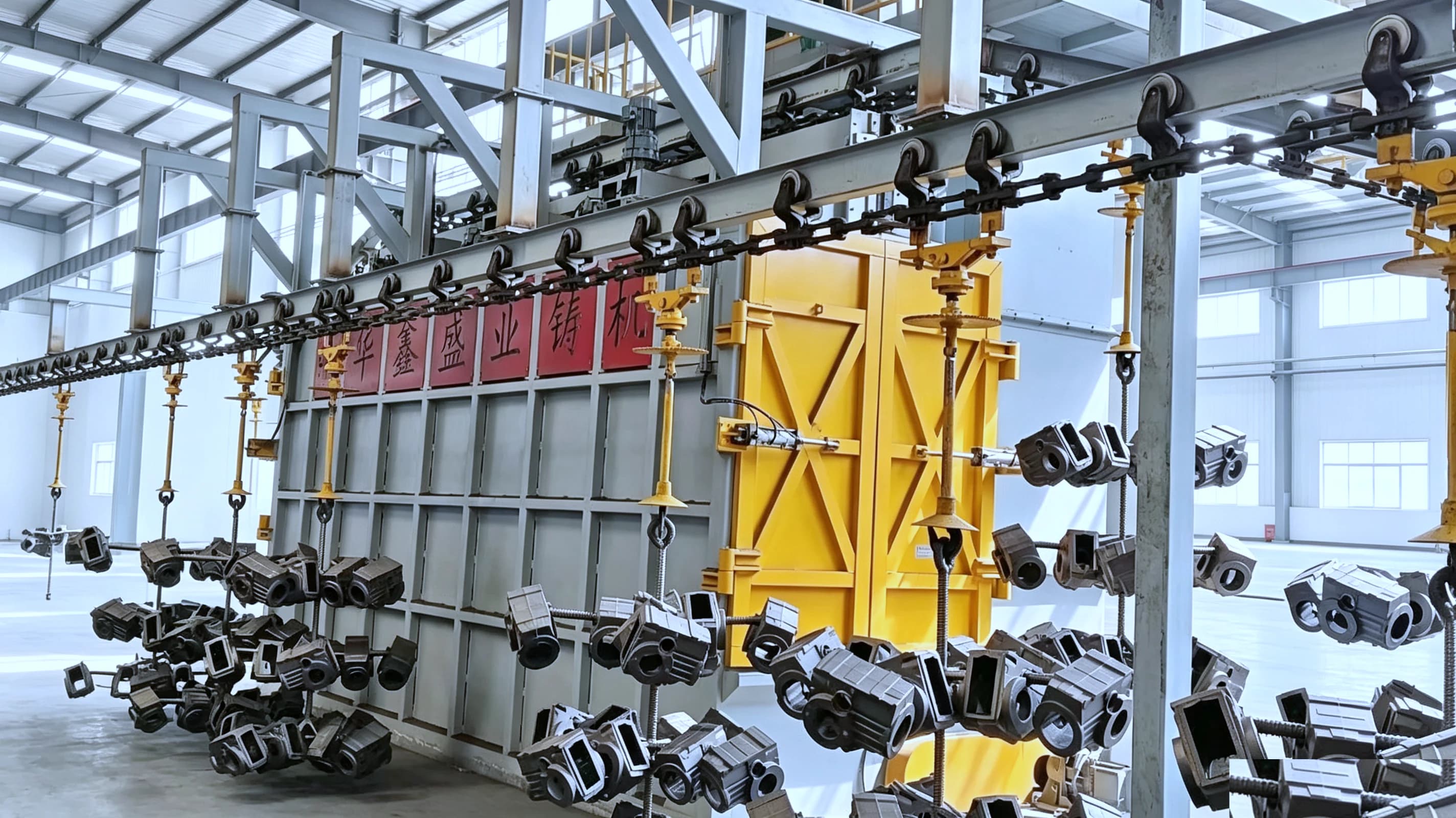

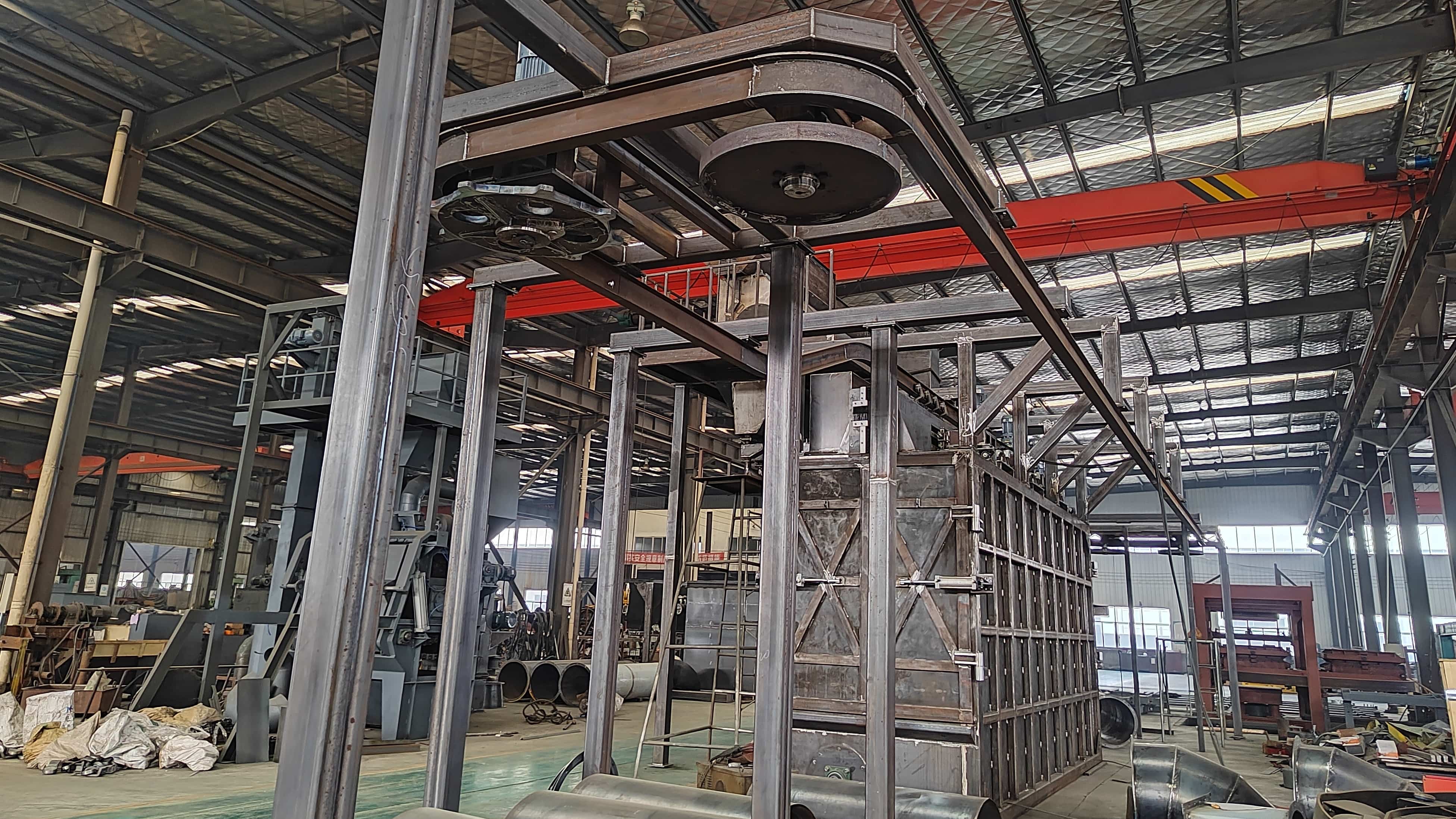

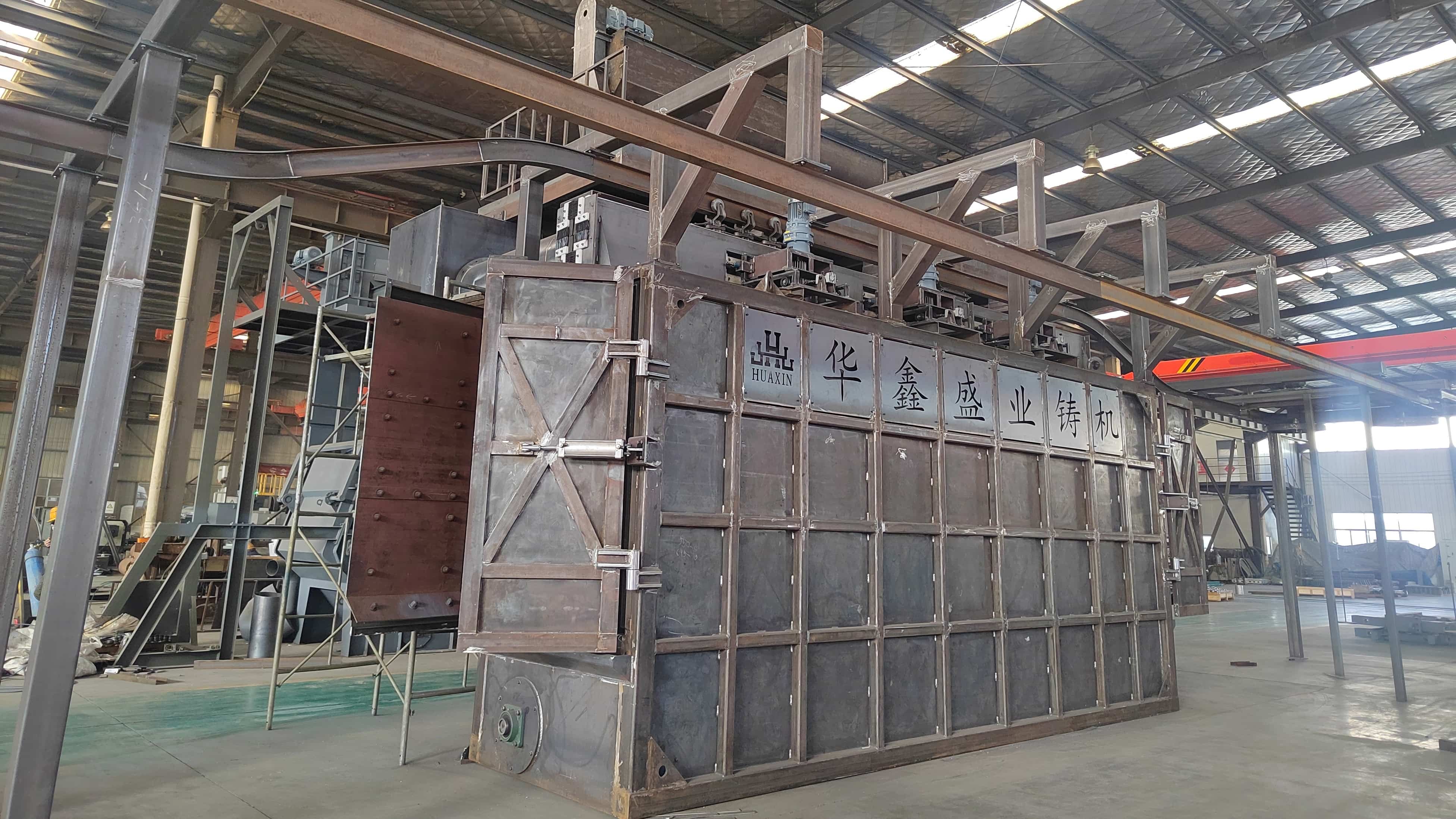

Overhead Conveyor Shot Blasting Machine
Huaxin overhead conveyor shot blasting machines provide continuous suspended-workpiece blasting for castings, forgings, stampings and fabricated steel components.
The system removes adhered sand, rust, scale and surface contamination while improving coating adhesion, fatigue resistance and surface consistency in continuous production.
Main Features
Built for Continuous Suspended-workpiece Cleaning
Casting and Forging Cleaning
Removes adhered sand, rust, scale and contaminants from cast and forged parts.
Improved Coating Adhesion
Creates a clean blast profile for primer, paint and protective coatings.
Fatigue Resistance Support
Shot impact helps relieve surface stress and improve service durability.
Flexible Hook Capacity
Standard configurations cover hook loads from 240 kg to 1000 kg.
Integrated Production Handling
Combines conveying, blasting and unloading for stable workshop throughput.
Technical Specifications
Typical Overhead Conveyor Configuration
ModelThroughputHook CapacityWorkpiece SizeInstalled Power
Q382C35-55 hooks/h240 kgDia. 0.5-0.7 x 1.6 m73.1 kW
Q383C38-50 hooks/h300 kgDia. 0.5-0.7 x 1.6 m82.8 kW
Q384C60-120 hooks/h400 kgDia. 0.5-0.85 x 1.9 m131.7 kW
Q483H20 hooks/h300 kgDia. 0.5-0.9 x 1.6 m52.8 kW
Q485H30-40 hooks/h500 kgDia. 0.5-0.9 x 1.6 m83.15 kW
Q4810H40-60 hooks/h1000 kgDia. 0.6-1.3 x 1.9 m114.72 kW
Q583H40 hooks/h300 kg3 x Dia. 0.4-0.8 x 1.6 m83.15 kW
Q585H40 hooks/h500 kg3 x Dia. 0.4-0.8 x 1.6 m73.15 kW
Q5810H40 hooks/h1000 kgDia. 0.4-1.2 x 2.2 m188 kW
