Efficient Surface Cleaning
Removes sand, cores and oxide scale from casting and fabrication surfaces.
Q37 Series

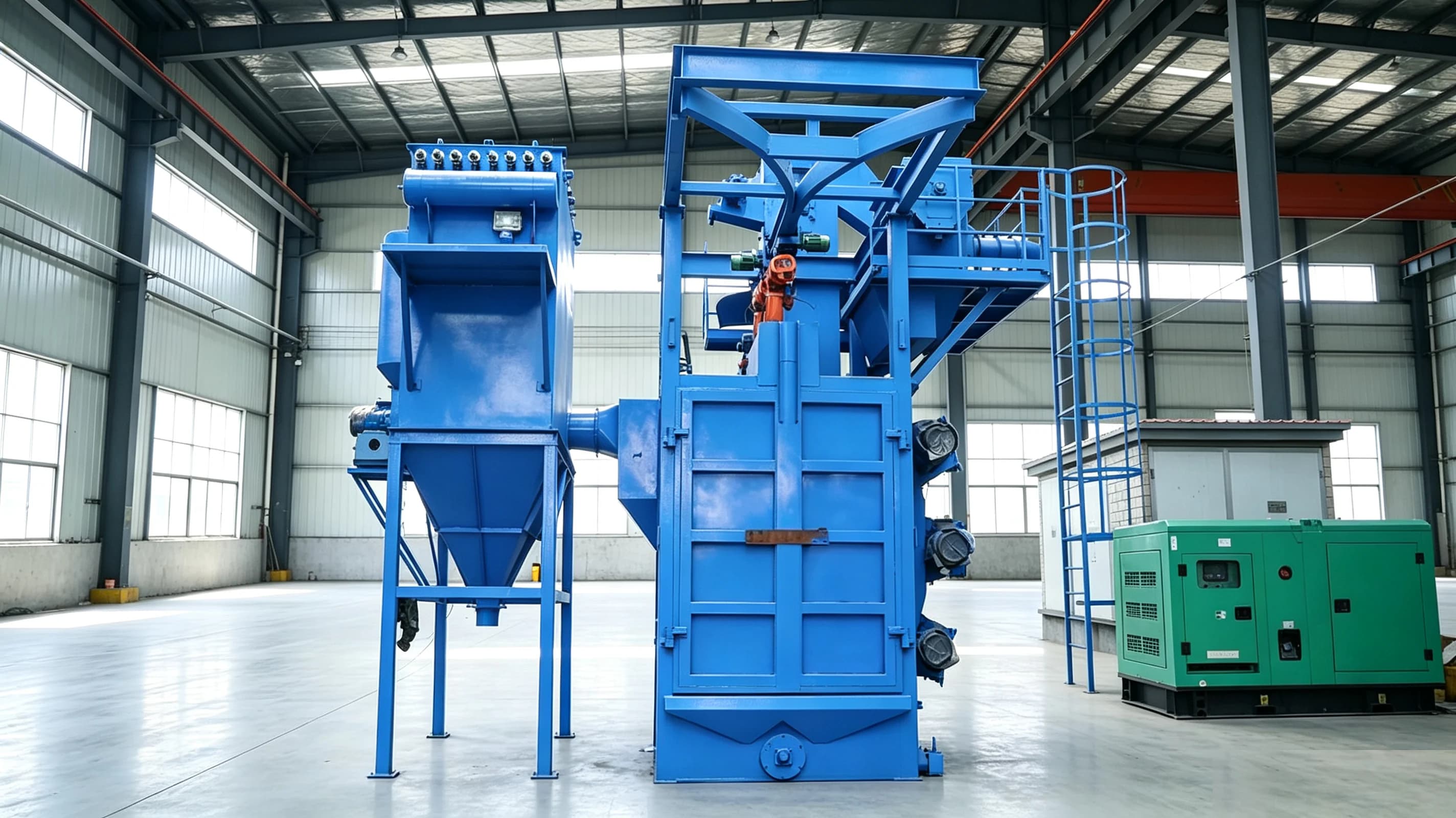

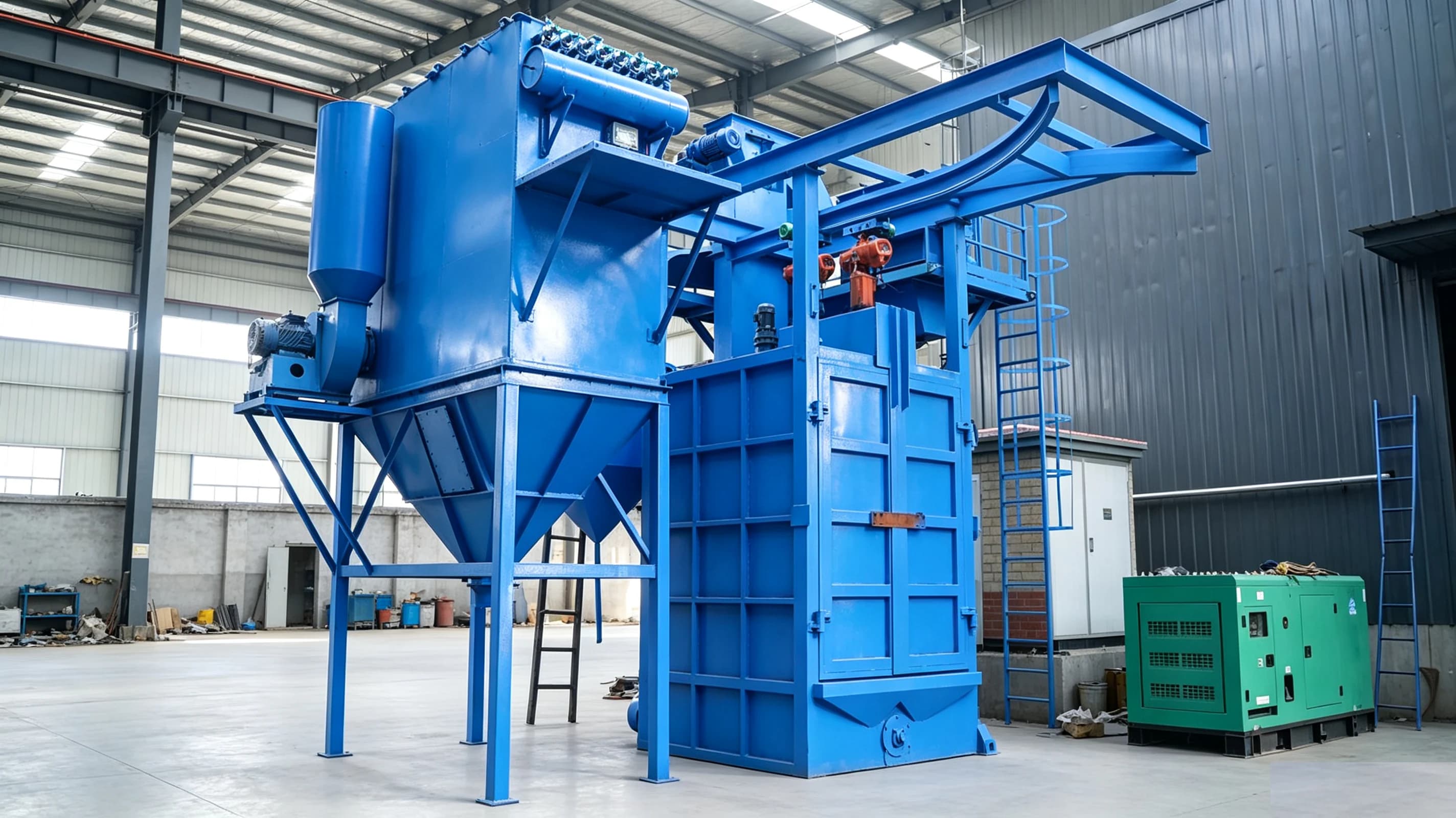

Hook Type Shot Blasting Machine
Huaxin Q37 hook type shot blasting machines clean, descale and strengthen castings, forgings, heat-treated parts and fabricated steel components.
The suspended hook system suits varied batches and delicate workpieces, improving surface quality while reducing collision damage.
Main Features
Built for Reliable Surface Preparation
Uniform Blasting Coverage
Suspended hook rotation exposes complex workpieces to consistent blast impact.
Gentle Workpiece Handling
Ideal for slender or thin-walled parts that should not collide during cleaning.
Heavy-duty Construction
Industrial chamber and conveying structure support demanding workshop operation.
Flexible Batch Production
Handles mixed small and medium batches across casting and metalworking plants.
Wide Industry Applications
Used for foundry, machinery, pressure vessel, automotive and shipbuilding parts.
Technical Specifications
Typical Q37 Series Configuration
ModelWorkpiece SizeHook CapacityBlast WheelsInstalled Power
Q376DDia. 700 x 1200 mm500 kg2 x 7.5 kW23.55 kW
Q378GDia. 1000 x 1600 mm1000 kg2 x 11 kW34.98 kW
Q3710Dia. 1200 x 1800 mm1000 kg2 x 15 kW49.55 kW
Q3710EDia. 1200 x 2000 mm1000 kg2 x 18.5 kW52.95 kW
Q3720Dia. 1400 x 2300 mm2000 kg3 x 11 kW58.27 kW
Q3730Dia. 1600 x 2400 mm3000 kg3 x 15 kW68.50 kW
Q3750Dia. 1800 x 2500 mm5000 kg4 x 11 kW86.50 kW
